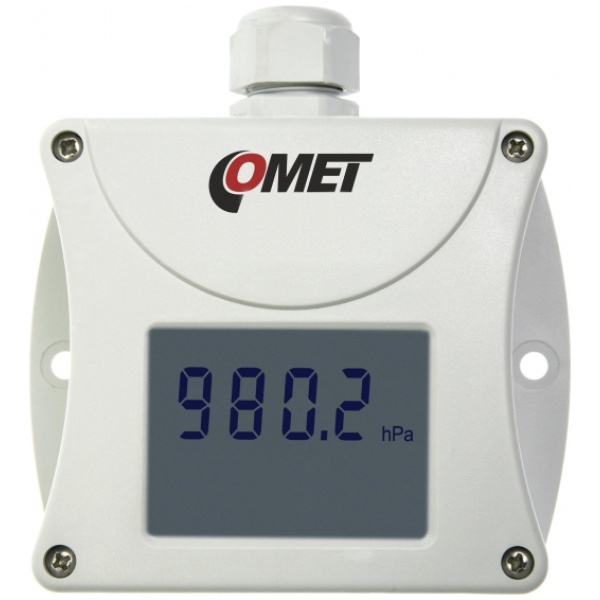

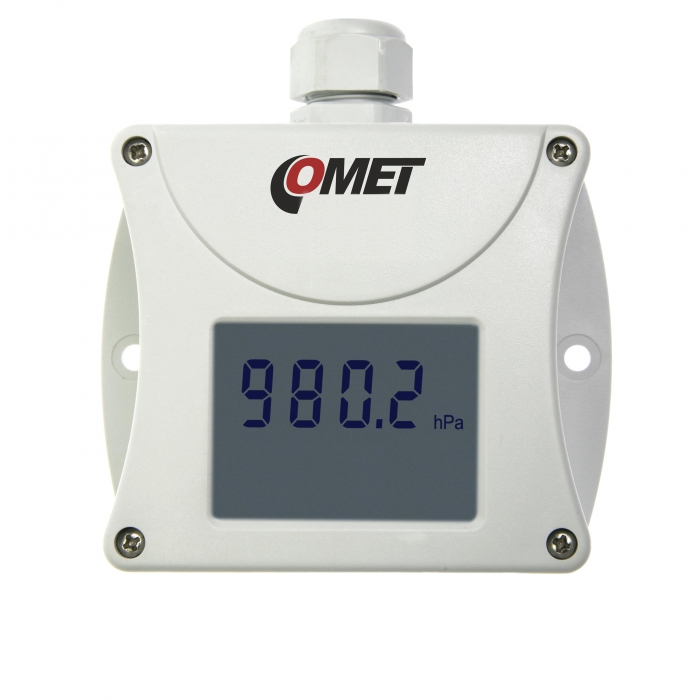

Barometric pressure transmitter – 0-10V output
BRAND
Atmospheric pressure transmitter. Outdoor, indoor use.
Barometric pressure transmitter for outdoor and indoor use.Display reading and pressure output is user selectable in these units: hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2.
NEW – AC Power – now also powered from 24 Vac !
Technical data
Measured value
Atmospheric pressure
ATMOSPHERIC PRESSURE SENSOR SENSOR
Measuring range
600 to 1100 hPa
600 to 1100 hPa
Accuracy
±1.3 hPa at 23 °C from 800 to 1100 hPa
±1.3 hPa at 23 °C from 800 to 1100 hPa
Resolution
0.1 hPa
0.1 hPa
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
-30 to +80 °C
Channels
internal atmospheric pressure sensor
internal atmospheric pressure sensor
Output
0 – 10 V
0 – 10 V
Available temperature units
hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2
Configuration of output
user adjustable from PC; measured range + value
user adjustable from PC; measured range + value
Power
15-30 Vdc; 24 Vac
15-30 Vdc; 24 Vac
Protection class
IP54
IP54
Dimensions
88,5 x 98 x 39,5 mm
88,5 x 98 x 39,5 mm
Weight
approx. 150 g
approx. 150 g
Warranty
3 years
3 years
code
T2214
