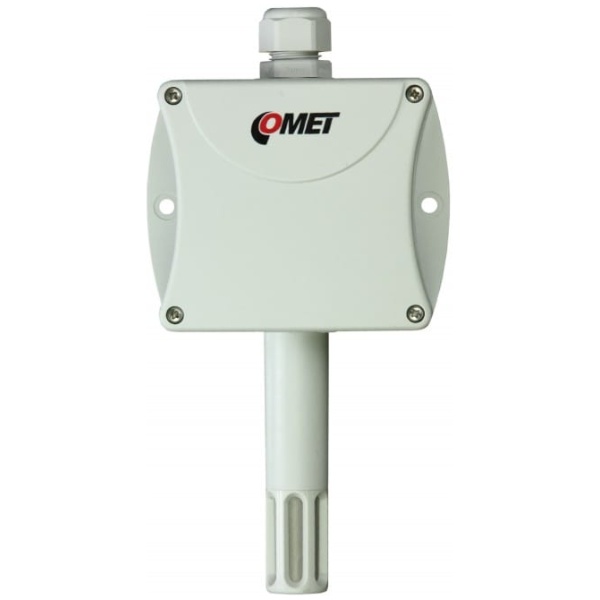

Economy humidity and temperature transmitter with 4-20mA outputs
BRAND
Low cost ambient temperature, relative humidity transmitter. Outdoor, indoor use.
Built-in relative humidity, temperature sensors.
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
-30 to +80 °C
Accuracy
±0.6 °C
±0.6 °C
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
0 to 100 % RH
Accuracy
±3,0 % RH in the range 5 to 95 %RV při 23 °C
±3,0 % RH in the range 5 to 95 %RV při 23 °C
Resolution
0.1% RH
0.1% RH
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
-30 to +80 °C
Channels
internal temperature and humidity sensor
internal temperature and humidity sensor
Output
4-20 mA, galvanic isolated
4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation
all temperature range
all temperature range
Power
9-30 Vdc
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
IP65 electronics; IP40 sensors
Dimensions
88,5 x 170 x 39,5 mm; stem length 75 mm
88,5 x 170 x 39,5 mm; stem length 75 mm
Weight
approx. 150 g
approx. 150 g
Warranty
3 years
3 years
code
P3110E
