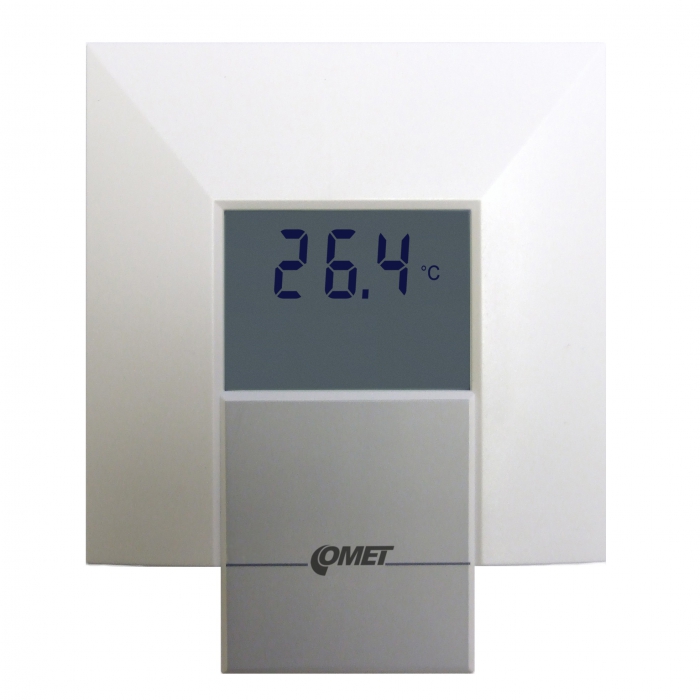

Interior temperature transmitter with 4-20mA output
BRAND
Ambient temperature transmitter. Indoor use.
Temperature transmitter is specially designed for use in exacting interiors in building energy management and HVAC systems. It designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.
Large dual line LCD is possible to switch off.
Computerized design ensures long term stability and fail indication. Transmitter is designed for use in non-aggressive environment.
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-10 to +50 °C
-10 to +50 °C
Accuracy
±0.5 °C
±0.5 °C
Resolution
0.1 °C
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-10 to +50 °C
-10 to +50 °C
Channels
internal temperature sensor
internal temperature sensor
Output
4-20 mA
4-20 mA
Available temperature units
degrees Celsius, degrees Fahrenheit
degrees Celsius, degrees Fahrenheit
Configuration of output
user adjustable from PC; measured range + value
user adjustable from PC; measured range + value
Power
9-30 Vdc
9-30 Vdc
Protection class
IP20
IP20
Dimensions
88 x 106 x 33 mm
88 x 106 x 33 mm
Weight
approx. 150 g
approx. 150 g
Warranty
3 years
3 years
code
T0118
