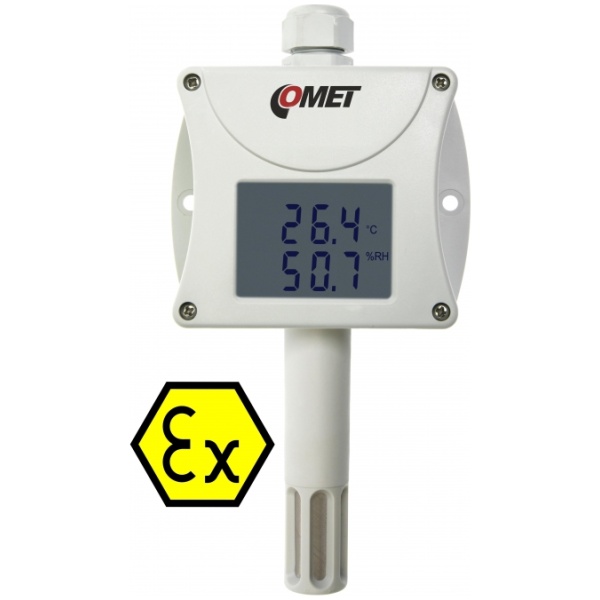

Intrinsically safe humidity and temperature transmitter with 4-20mA output
BRAND
ATEX certified relative humidity temperature transmitter. Outdoor, indoor use.
Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
ATEX certification for use in potentially explosive environments.
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
-30 to +80 °C
Accuracy
±0.4 °C
±0.4 °C
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
0.1 °C
ATEX CERTIFICATION
Certificate
FTZÚ 13 ATEX 0189X
FTZÚ 13 ATEX 0189X
Marking
EX ll 3G Ex ic llC T6 Gc
EX ll 3G Ex ic llC T6 Gc
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
-30 to +60 °C
Channels
internal temperature and humidity sensor
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
4-20 mA, galvanic isolated
4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation
all temperature range
all temperature range
Configuration of output
user adjustable from PC; measured range + value
user adjustable from PC; measured range + value
Power
9-30 Vdc
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
IP65 electronics; IP40 sensors
Dimensions
88,5 x 170 x 39,5 mm; stem length 75 mm
88,5 x 170 x 39,5 mm; stem length 75 mm
Weight
approx. 150 g
approx. 150 g
Warranty
3 years
3 years
code
T3110Ex
