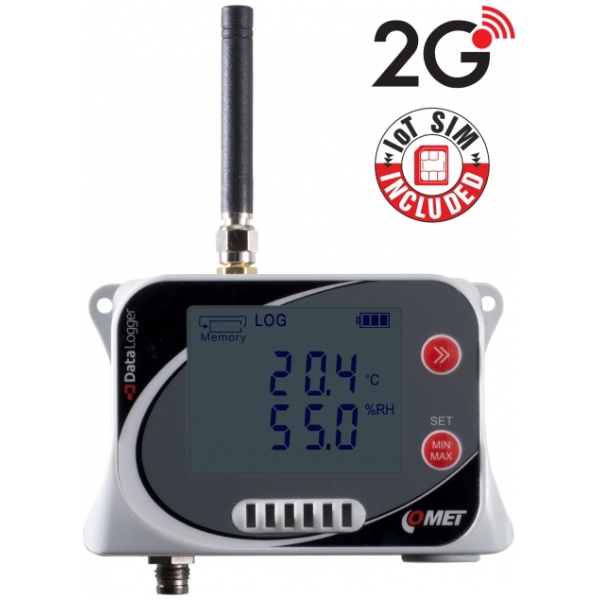

IoT Wireless Temperature and Relative Humidity Datalogger with connector for other temperature probe, with built-in 2G modem
BRAND
IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.
Measured values can be sent to the internet storage COMET Cloud, which is a complete monitoring, alarm and analysis system. In case of exceeded set limits e-mail is sent from the COMET Cloud.
Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-20 to +60 °C
-20 to +60 °C
Accuracy
±0.4 °C
±0.4 °C
Resolution
0.1 °C
0.1 °C
TEMPERATURE SENSOR – external probe Pt1000
Measuring range
-90 to +260 °C
-90 to +260 °C
Accuracy
±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
0 to 100 % RH
Accuracy
± 1.8 % RH
± 1.8 % RH
Resolution
0.1% RH
0.1% RH
DEW POINT
Measuring range
-90 to +60 °C
-90 to +60 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
0.1 °C
GSM MODEM PARAMETERS
Quad-band
850/900/1800/1900MHz
850/900/1800/1900MHz
Compliant to GSM
Phase2/2+
Phase2/2+
GPRS
GPRS mobile station class B
GPRS mobile station class B
Class 4
2W @ 850/900MHz
2W @ 850/900MHz
Class 1
1W @ 1800/1900MHz
1W @ 1800/1900MHz
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
-20 to +60 °C
Channels
internal temperature and humidity sensor, 1x external temperature probe
internal temperature and humidity sensor, 1x external temperature probe
Memory
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval to the internal memory
adjustable from 1 second to 24 hours
adjustable from 1 second to 24 hours
Recording interval to the COMET Cloud
from 5 minutes
from 5 minutes
Interval for measuring and evaluating alarms
adjustable 1 s, 10 s, 1 min
adjustable 1 s, 10 s, 1 min
Recording mode
noncyclic – data logging stops after filling the memory
cyclic – after filling memory oldest data is overwritten by new
noncyclic – data logging stops after filling the memory
cyclic – after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
year, leap year, month, day, hour, minute, second
Power
rechargeable Li-Ion battery A8200, 3.6V/5200mAh
rechargeable Li-Ion battery A8200, 3.6V/5200mAh
Protection class
IP67 electronics; IP30 sensors
IP67 electronics; IP30 sensors
Dimensions
61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
61 x 93 x 53 mm, with antenna 120 x 93 x 53 mm
Weight (including batteries)
approx. 260 g
approx. 260 g
Warranty
3 years
3 years
code
U3631Msim
