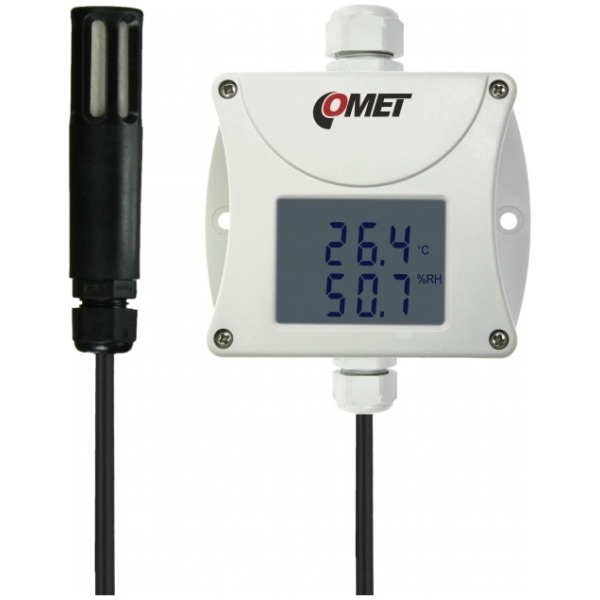

RH+T+Tdp cable probe, output 4-20mA
BRAND
Humidity, temperature transmitter. Outdoor, indoor use.
Relative humidity, temperature sensors at probe on the cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
The device is supplied with T+RH probe with 1 meter cable.
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +105 °C
-30 to +105 °C
Accuracy
±0.4 °C
±0.4 °C
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
-30 to +80 °C
Channels
1x connectable temperature+humidity probe
1x connectable temperature+humidity probe
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
4-20 mA, galvanic isolated
4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation
all temperature range
all temperature range
Configuration of output
user adjustable from PC; measured range + value
user adjustable from PC; measured range + value
Power
9-30 Vdc
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
IP65 electronics; IP40 sensors
Dimensions
88,5 x 145 x 39,5 mm; length/diameter of external probe 88/18 mm
88,5 x 145 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length
1 meter
1 meter
Weight
approx. 210 g
approx. 210 g
Warranty
3 years
3 years
code
T3111
