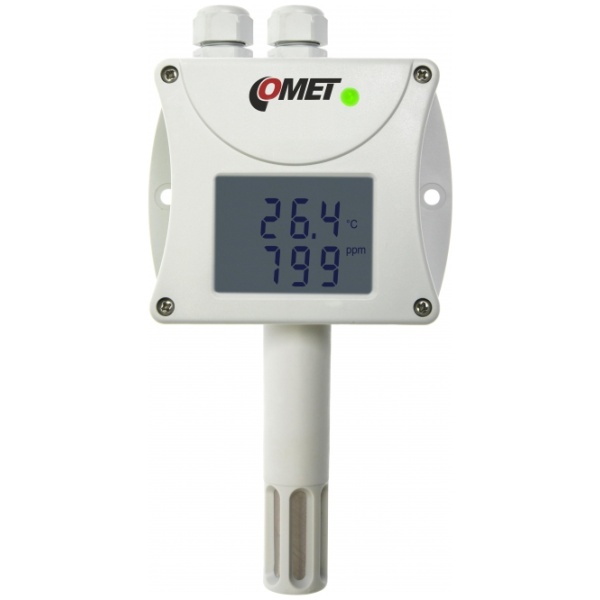

Temperature, humidity, CO2 transmitter with RS232 interface

Request Quote

Required Quantity *

Phone Number *

First Name *

Email Address *

Company Name *

Street Address *

Apartment, suite, etc

City *

State/Province *

ZIP / Postal Code *

Country *

SKU: C95T6340 Category: Sensors | Transducers Tags: CO2, Counted Values, Relative Humidity, Temperature Brand: Comet System

BRAND

Temperature, humidity, CO2 level sensor. Outdoor, indoor use.

Green LED shines – CO2 concentration 0 to 1000 ppm

Yellow LED shines – CO2 concentration 1001 to 1200 ppm

Red LED shines – CO2 concentration 1201 ppm and more

Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):

Extended measuring range: 0 to 10 000 ppm
Accuracy in extended range: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

CO2

TEMPERATURE SENSOR

Measuring range
-10 to +50 °C

Accuracy
±0.5 °C

Resolution
0.1 °C

HUMIDITY SENSOR

Measuring range
5 to 95 % RH

Accuracy
± 2,5 % RH

Resolution
0.1% RH

DEW POINT

Measuring range
-60 to +80 °C

Accuracy
±1.6°C at ambient temperature T<25°C and RH>30%

Resolution
0.1 °C

CO₂ SENSOR

Measuring range
0 to 5000 ppm

Accuracy
±(50ppm +3% from reading) at 25°C and 1013hPa

Resolution
1 ppm

GENERAL TECHNICAL DATA

Operating temperature
-30 to +60 °C

Channels
internal temperature, humidity and CO₂ sensor

Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Range of humidity sensor temperature compensation
all temperature range

Output
RS232

Communication protocol
ModBus RTU and Advantech ADAM compatible protocol

Power
9-30 Vdc

Protection class
IP30 electronics, IP40 sensors

Dimensions
88,5 x 170 x 39,5 mm; stem length 75 mm

Weight
approx. 150 g

Warranty
3 years

code

T6340

Temperature, humidity, CO2 transmitter with RS232 interface

Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):
