Temperature probe Pt1000TR160/0, without connector, cable 1 meter
BRAND
Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

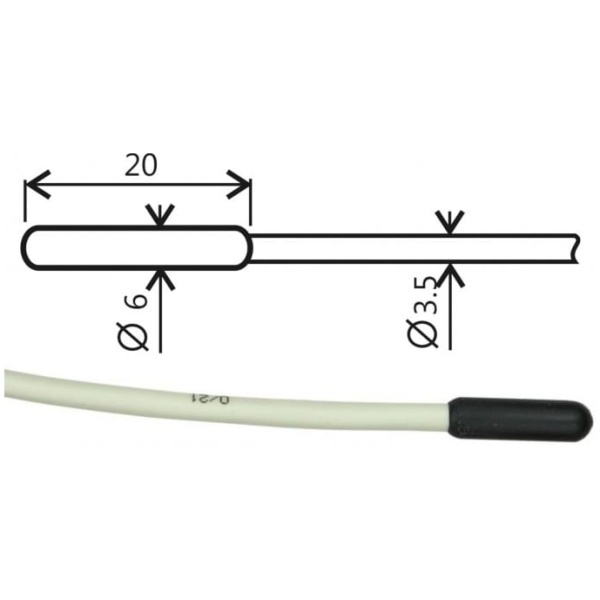

Tolerance t = ±(0.30+0.005*|t|) – class B in accordance with IEC751. Polyamide enclosure with shielded PVC cable of specified length. Enclosure diameter 6mm, length 20mm. Diameter of the cable 3. Without connector.
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
-30 to +80 °C
Accuracy
± (0.3 + 0.005 t) at °C
± (0.3 + 0.005 t) at °C
Accuracy class
A
A
Time response
t0.5 <12 s (in flowing water at > 0.2 m/s)
t50 <12s, t90 <32s (in liquid)
t0.5 <12 s (in flowing water at > 0.2 m/s)
t50 <12s, t90 <32s (in liquid)
Type of sensing element
Pt1000
Pt1000
Temperature coefficient
3850 ppm / °C
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
2-wire connection
Material of the case
POLYAMIDE-based plastic
POLYAMIDE-based plastic
Dimensions of the case
length 20 mm;
diameter 5.7 ± 0.1 mm
length 20 mm;
diameter 5.7 ± 0.1 mm
Lead-in cable
PVC shielded
PVC shielded
Length of lead-in cable
1 meter
1 meter
Connector
without connector
without connector
IP protection
IP67
IP67
Warranty
30 months
30 months
code
SN199
