Temperature probe Pt1000TR160/M, MiniDin connector, cable 20 meters
BRAND
Low cost multi-purpose watertight (IP67) probe -30 to +80°C.

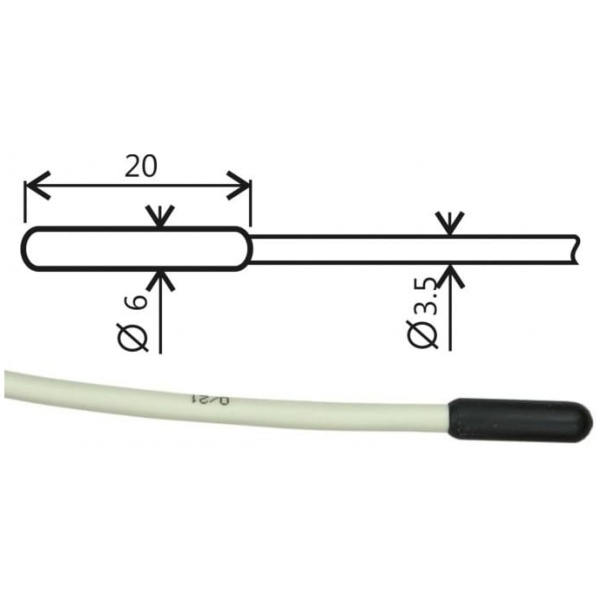

Tolerance t = ±(0.30+0.005*|t|) – class B in accordance with IEC751. Polyamide enclosure with shielded PVC cable of specified length. Enclosure diameter 6mm, length 20mm. Diameter of the cable 3. With ELKA connector.
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
-30 to +80 °C
Accuracy
± (0.3 + 0.005 t) at °C
± (0.3 + 0.005 t) at °C
Accuracy class
A
A
Time response
t0.5 <12 s (in flowing water at > 0.2 m/s)
t50 <12s, t90 <32s (in liquid)
t0.5 <12 s (in flowing water at > 0.2 m/s)
t50 <12s, t90 <32s (in liquid)
Type of sensing element
Pt1000
Pt1000
Temperature coefficient
3850 ppm / °C
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
2-wire connection
Material of the case
POLYAMIDE-based plastic
POLYAMIDE-based plastic
Dimensions of the case
length 20 mm;
diameter 5.7 ± 0.1 mm
length 20 mm;
diameter 5.7 ± 0.1 mm
Lead-in cable
PVC shielded
PVC shielded
Length of lead-in cable
20 meters
20 meters
Connector
MiniDin
MiniDin
IP protection
IP67
IP67
Warranty
30 months
30 months
code
SN204M
