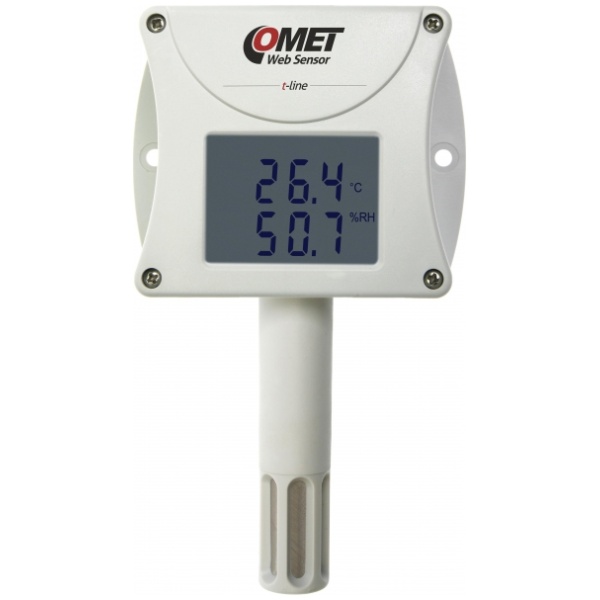

Web Sensor – remote thermometer hygrometer with Ethernet interface
BRAND
Ambient temperature, relative humidity t-line Web sensor. Remote alarm.
Web Sensor with built-in relative humidity and temperature sensors designed as weather sensor.
High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
With a newly purchased WebSensor with Ethernet communication, you receive 3 months of COMET Cloud. for free; a full year of operation in COMET Cloud. then requires 1 credit.
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
-30 to +80 °C
Accuracy
±0.6 °C
±0.6 °C
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
-30 to +80 °C
Channels
internal temperature and humidity sensor
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
Ethernet
Ethernet
Range of humidity sensor temperature compensation
all temperature range
all temperature range
Measuring interval
2 s
2 s
Available temperature units
degrees Celsius, degrees Fahrenheit
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
E-mail, SNMP Trap, Syslog
Power
9-30 Vdc
9-30 Vdc
Protection class
IP30
IP30
Dimensions
88,5 x 147,5 x 39,5 mm; stem length 75 mm
88,5 x 147,5 x 39,5 mm; stem length 75 mm
Weight
approx. 155 g
approx. 155 g
Warranty
3 years
3 years
code
T3510
