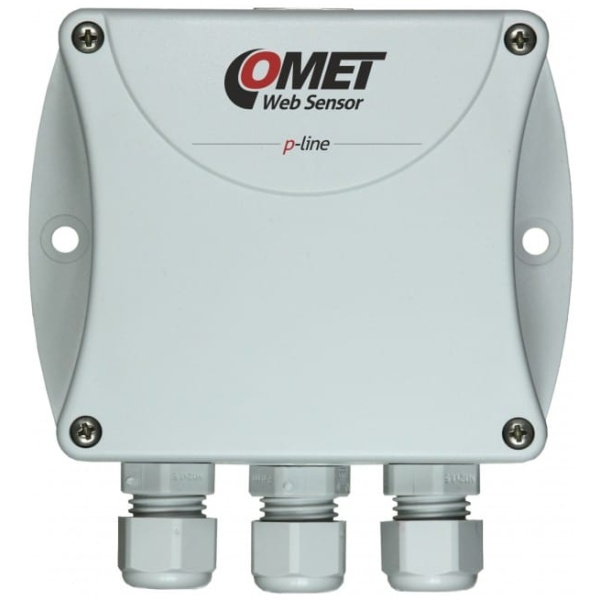

Web Sensor – two channel remote 0-20mA inputs
BRAND
Dual channel p-line Web Sensor from 0-20mA (4-20mA) to Ethernet. Remote alarm.
Easy wireless communication using Web Sensor and optional Wireless TP-LINK router.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Technical data
Measured value
Current
CURRENT INPUT
Accuracy proudu
±0.1% FS od 0 °C do +50 °C
±0.3% FS od -30 °C do +80 °C
±0.1% FS od 0 °C do +50 °C
±0.3% FS od -30 °C do +80 °C
Resolution
1 µA
1 µA
A/D converter resolution
24bit sigma-delta
24bit sigma-delta
Input resistance
20 Ω
20 Ω
Measuring interval
1 s
1 s
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
-30 to +80 °C
Channels
2x proudový vstup
2x proudový vstup
Output
Ethernet
Ethernet
Measuring interval
1 s
1 s
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
E-mail, SNMP Trap, Syslog
Power
9-30 Vdc
9-30 Vdc
Protection class
IP30
IP30
Dimensions
88 x 126 x 39,5 mm
88 x 126 x 39,5 mm
Weight
approx. 150 g
approx. 150 g
Warranty
3 years
3 years
code
P2520
