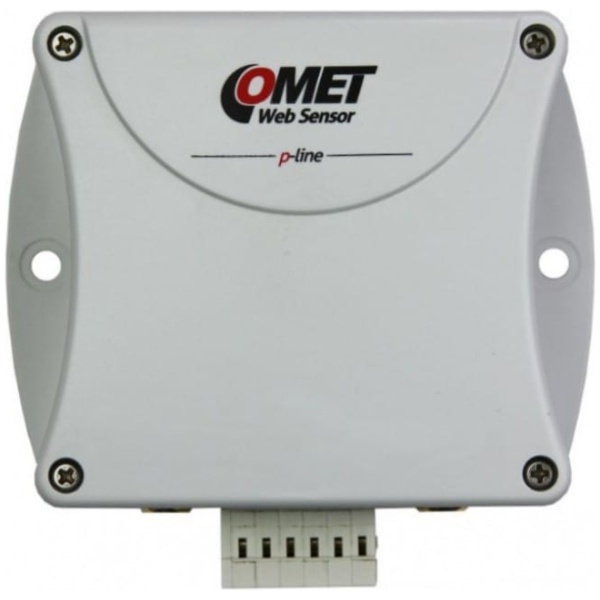

Web Sensor – two channels with binary inputs
BRAND
P-line Web Sensor for measuring temperature, relative humidity and three binary inputs for two-states signals. Remote alarm.
The devices are equipped with two connectors for connection of the temperature and humidity external probes and three binary inputs for two-states signals. The dry contact or two-state voltage signal can be connect to the binary input.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Technical data
Measured value
Temperature
Relative humidity
Two-state signal
TEMPERATURE SENSOR
Measuring range
-55 to +105 °C
-55 to +105 °C
Accuracy
according to the connected probe DSxx
according to the connected probe DSxx
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
according to the connected probe DSxx
according to the connected probe DSxx
Accuracy
according to the connected probe DSxx
according to the connected probe DSxx
Resolution
0.1% RH
0.1% RH
BINARY INPUT
Parameters of the voltage contact
Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source < 2kOhm
Input voltage range 0 to +30 V
Voltage input level for „L“:< 1,0 V;
Voltage input level for „H“:> 2,5 V;
Internal resistivity of the voltage source < 2kOhm
Input voltage range 0 to +30 V
Parameters of the voltage-free contact
Voltage on the unclosed contact 3,3 V
Current through closed contact 0,1 mA
Maximum resistivity of the contact < 5kOhm
Voltage on the unclosed contact 3,3 V
Current through closed contact 0,1 mA
Maximum resistivity of the contact < 5kOhm
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
-30 to +80 °C
Channels
1x external temperature probe nebo 1x connectable temperature+humidity probe
1x external temperature probe nebo 1x connectable temperature+humidity probe
Output
Ethernet
Ethernet
Measuring interval
2 s
2 s
Available temperature units
degrees Celsius, degrees Fahrenheit
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
E-mail, SNMP Trap, Syslog
Power
5 Vdc
5 Vdc
Protection class
IP30
IP30
Dimensions
88 x 74 x 39,5 mm
88 x 74 x 39,5 mm
Weight
approx. 125 g
approx. 125 g
Warranty
3 years
3 years
code
P8552
