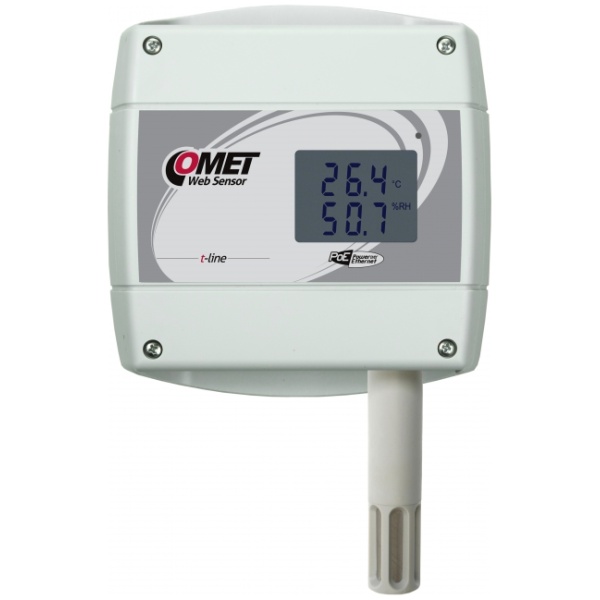

Web Sensor with PoE – remote thermometer hygrometer with Ethernet interface

Request Quote

SKU: C95T3610 Category: Tags: , , Brand:
BRAND
T3610

Ambient temperature, relative humidity t-line Web sensor with Power over Ethernet feature. Remote alarm.

PoE Web Sensor with built-in relative humidity and temperature sensors. Can serve as weather sensor.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Power over Ethernet feature according IEEE 802.3af is supported. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

Processing and analysis of measured data:

  • online in COMET Cloud
  • COMET Database software
  • integration into 3-party systems



Technical data

Measured value


Temperature

Relative humidity

Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range
-20 to +60 °C
Accuracy
±0.6 °C
Resolution
0.1 °C

HUMIDITY SENSOR

Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH

DEW POINT

Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C

GENERAL TECHNICAL DATA

Operating temperature
-20 to +60 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
Ethernet
Range of humidity sensor temperature compensation
all temperature range
Measuring interval
2 s
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
Power
Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class
IP30
Dimensions
136 x 201 x 45 mm; stem length 75 mm
Weight
approx. 360 g
Warranty
3 years

  • code
    T3610
