WebSensor – remote CO2 concentration thermometer hygrometer with Ethernet interface, duct mount
BRAND

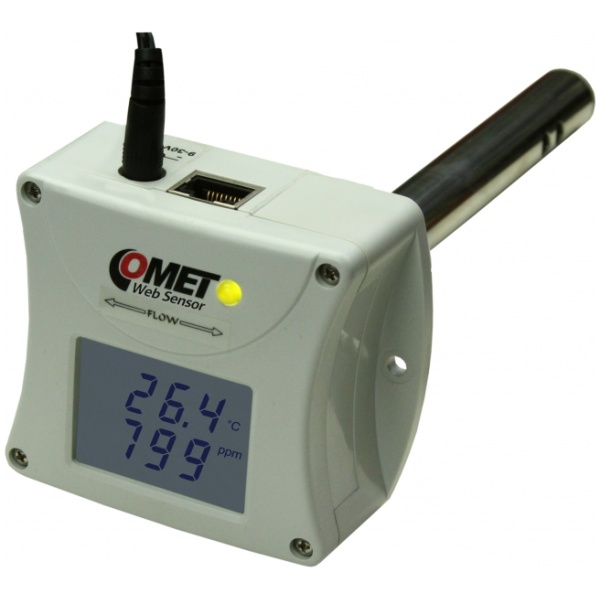

Duct mount CO2 concentration t-line WebSensor.
Web Sensor with built-in concentration CO2, temperature, relative humidity sensor for duct mount.
A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.
The CO2 concentration is shown on the display or signaled by a color LED.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):
- Extended measuring range: 0 to 10 000 ppm
- Accuracy in extended range: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
CO2
TEMPERATURE SENSOR
Measuring range
-30 to +60 °C
-30 to +60 °C
Accuracy
±0.4 °C
±0.4 °C
Resolution
0.1 °C
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
0 to 100 % RH
Accuracy
± 2,5 % RH
± 2,5 % RH
Resolution
0.1% RH
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
-60 to +80 °C
Accuracy
±1.6°C at ambient temperature T<25°C and RH>30%
±1.6°C at ambient temperature T<25°C and RH>30%
Resolution
0.1 °C
0.1 °C
CO2 SENSOR
Measuring range
0 to 5000 ppm
0 to 5000 ppm
Accuracy
±(50ppm +3% from reading) at 25°C and 1013hPa
±(50ppm +3% from reading) at 25°C and 1013hPa
Resolution
1 ppm
1 ppm
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
-30 to +60 °C
Channels
internal CO2 sensor
internal CO2 sensor
Output
Ethernet
Ethernet
Measuring interval
15 s
15 s
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
E-mail, SNMP Trap, Syslog
Power
9-30 Vdc
9-30 Vdc
Protection class
IP30 electronics; IP20 sesors
IP30 electronics; IP20 sesors
Dimensions
89 x 73 x 240 mm; stem length 130 mm
89 x 73 x 240 mm; stem length 130 mm
Weight
approx. 260 g
approx. 260 g
Warranty
3 years
3 years
code
T6545
