SKU: C95T5540 Category: Sensors | Transducers Tag: CO2 Brand: Comet System

BRAND

CO2 – carbon dioxide t-line Web sensor. Remote alarm.

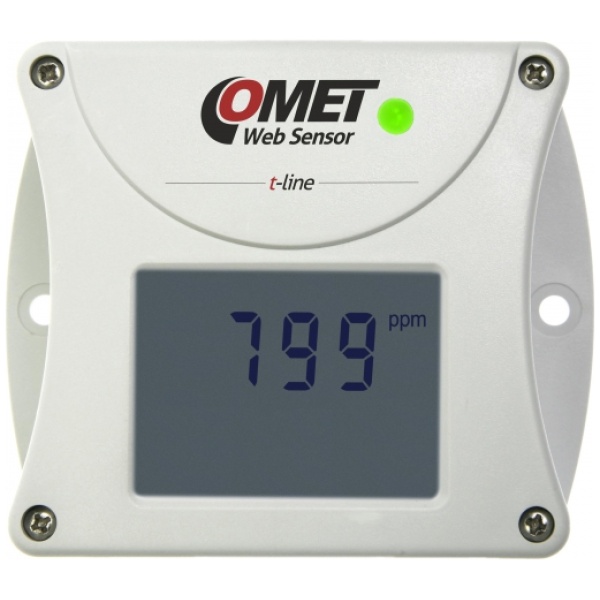

Web Sensor with built-in concentration CO₂ sensor.

A multiple point CO₂ and temperature adjustment procedure leads to excellent CO₂ measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO₂ sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:

online in COMET Cloud
COMET Database software
integration into 3-party systems

Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):

Extended measuring range: 0 to 10 000 ppm
Accuracy in extended range: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

Technical data

Measured value

CO2

CO₂ SENSOR

Measuring range
0 to 5000 ppm

Accuracy
±(50ppm +3% from reading) at 25°C and 1013hPa

Resolution
1 ppm

GENERAL TECHNICAL DATA

Operating temperature
-30 to +60 °C

Channels
internal CO₂ sensor

Output
Ethernet

Measuring interval
15 s

Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols
E-mail, SNMP Trap, Syslog

Power
9-30 Vdc

Protection class
IP30

Dimensions
88,5 x 72,5 x 39,5 mm

Weight
approx. 140 g

Warranty
3 years

code

T5540
