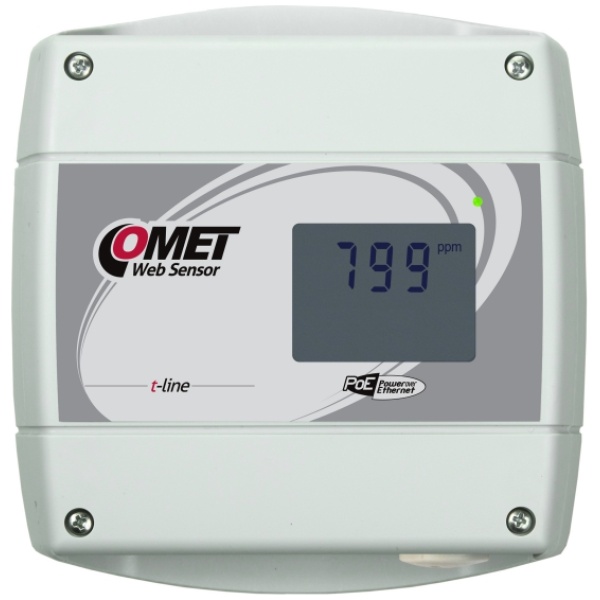

WebSensor with PoE – remote CO2 concentration with Ethernet interface

Request Quote

Required Quantity *

Phone Number *

First Name *

Email Address *

Company Name *

Street Address *

Apartment, suite, etc

City *

State/Province *

ZIP / Postal Code *

Country *

SKU: C95T5640 Category: Sensors | Transducers Tag: CO2 Brand: Comet System

BRAND

CO2 – carbon dioxide t-line Web sensor with Power over Ethernet feature. Remote alarm.

Web Sensor with built-in concentration CO₂ sensor with PoE function.

A multiple point CO₂ and temperature adjustment procedure leads to excellent CO₂ measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO₂ sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

The CO2 concentration is shown on the display or signaled by a color LED.

Processing and analysis of measured data:

online in COMET Cloud
COMET Database software
integration into 3-party systems

Optional CO₂ measuring range extension from the standard 0 to 5,000 ppm up to 0 to 10,000 ppm (available at extra cost):

Extended measuring range: 0 to 10 000 ppm
Accuracy in extended range: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

Technical data

Measured value

CO2

Range of CO2 concentration measurement
0 to 5000ppm

Accuracy of CO2 concentration measurement
±(50ppm +3% from reading) at 25°C and 1013hPa

Optional range of CO2 concentration measurement
0 to 10000ppm ±(100ppm +5% from reading) at 25°C and 1013hPa

Resolution
1ppm

Measuring interval
15s

Temperature operating range
-20 to +60°C

IP protection
IP30

LAN connection
RJ-45 connector, 10Base-T or 100Base-TX

Communication protocols
WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols
E-mail, SNMP Trap, Syslog

Configuration
T-Sensor, WWW configuration

Power
Power over Ethernet according to IEEE 802.3af or 5Vdc

Power connector
co-axial, diameter 5.5 x 2.1mm

Dimensions
136 x 136 x 45mm (W x H x D)

Weight
approximately 300g

Warranty
3 years

code

T5640
