WebSensor with PoE – remote CO2 concentration with Ethernet interface
BRAND
CO2 – carbon dioxide t-line Web sensor with Power over Ethernet feature. Remote alarm.

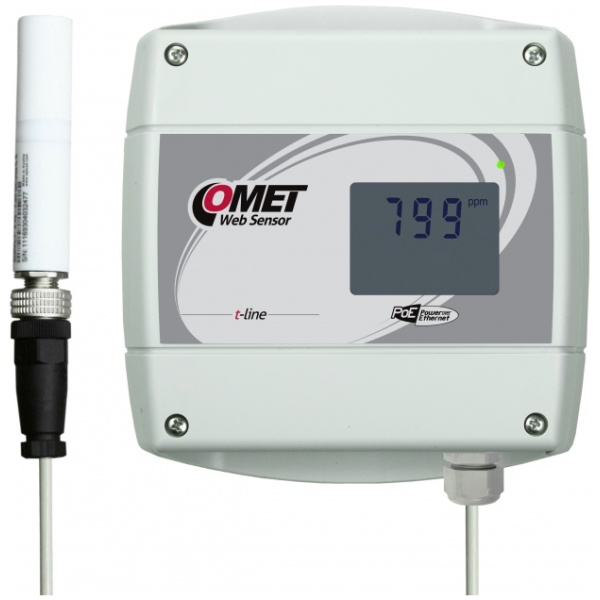

CO2 Web Sensor with PoE function.
A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.
The CO2 concentration is shown on the display or signaled by a color LED.
The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Technical data
Measured value
CO2
CO2 SENSOR
Measuring range
0 to 10 000 ppm
0 to 10 000 ppm
Accuracy
±(100ppm +5% from reading) at 25°C and 1013hPa
±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution
1 ppm
1 ppm
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
-20 to +60 °C
Channels
1x external CO2 sensor
1x external CO2 sensor
Output
Ethernet
Ethernet
Measuring interval
15 s
15 s
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
E-mail, SNMP Trap, Syslog
Power
Power over Ethernet according to IEEE 802.3af or 5Vdc
Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class
IP30 electronics; IP65 sensors
IP30 electronics; IP65 sensors
Dimensions
136 x 117 x 45 mm
136 x 117 x 45 mm
External probe cable length CO2
1 meter (optionally 2 or 4 meters)
1 meter (optionally 2 or 4 meters)
Weight
approx. 380 g
approx. 380 g
Warranty
3 years
3 years
code
T5641
